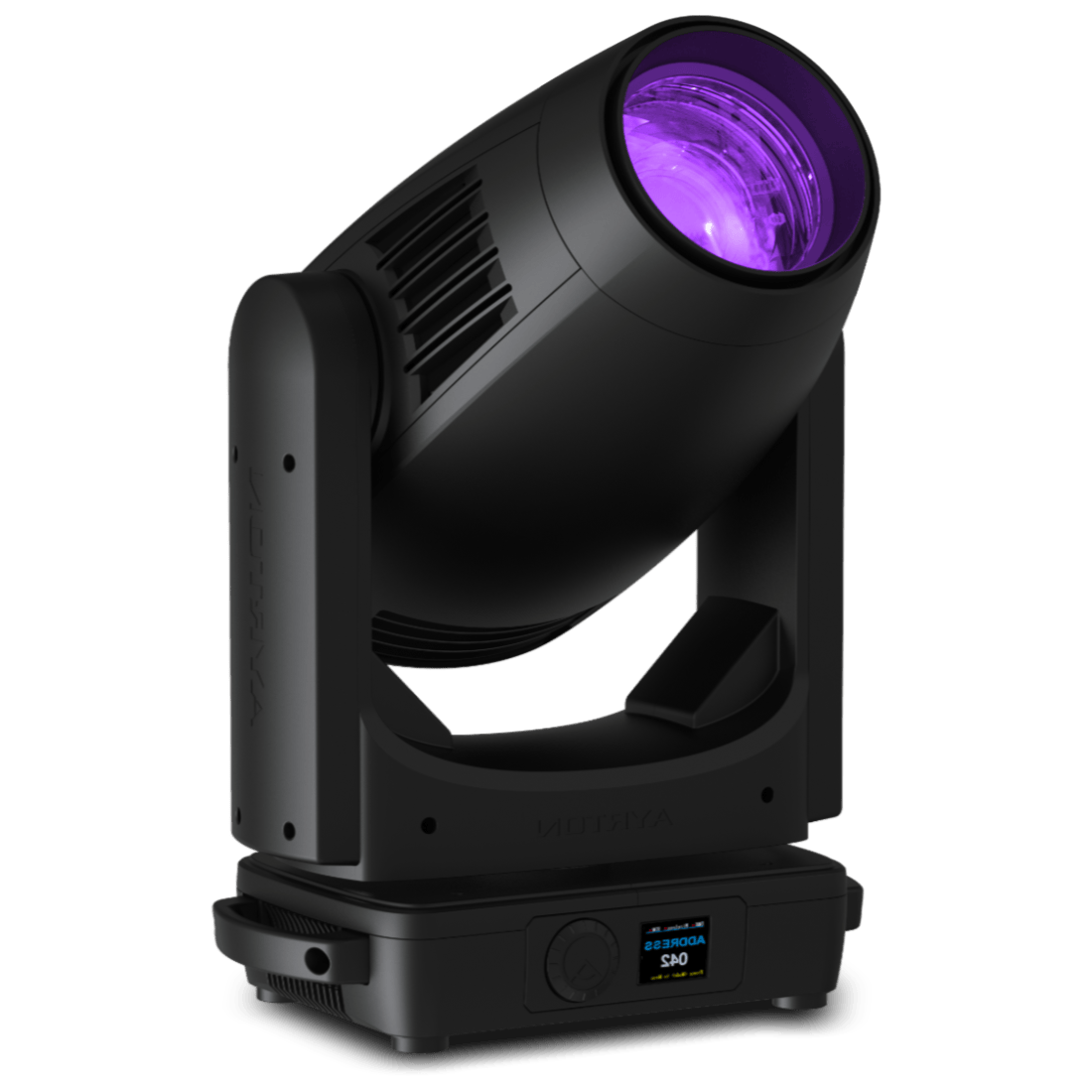

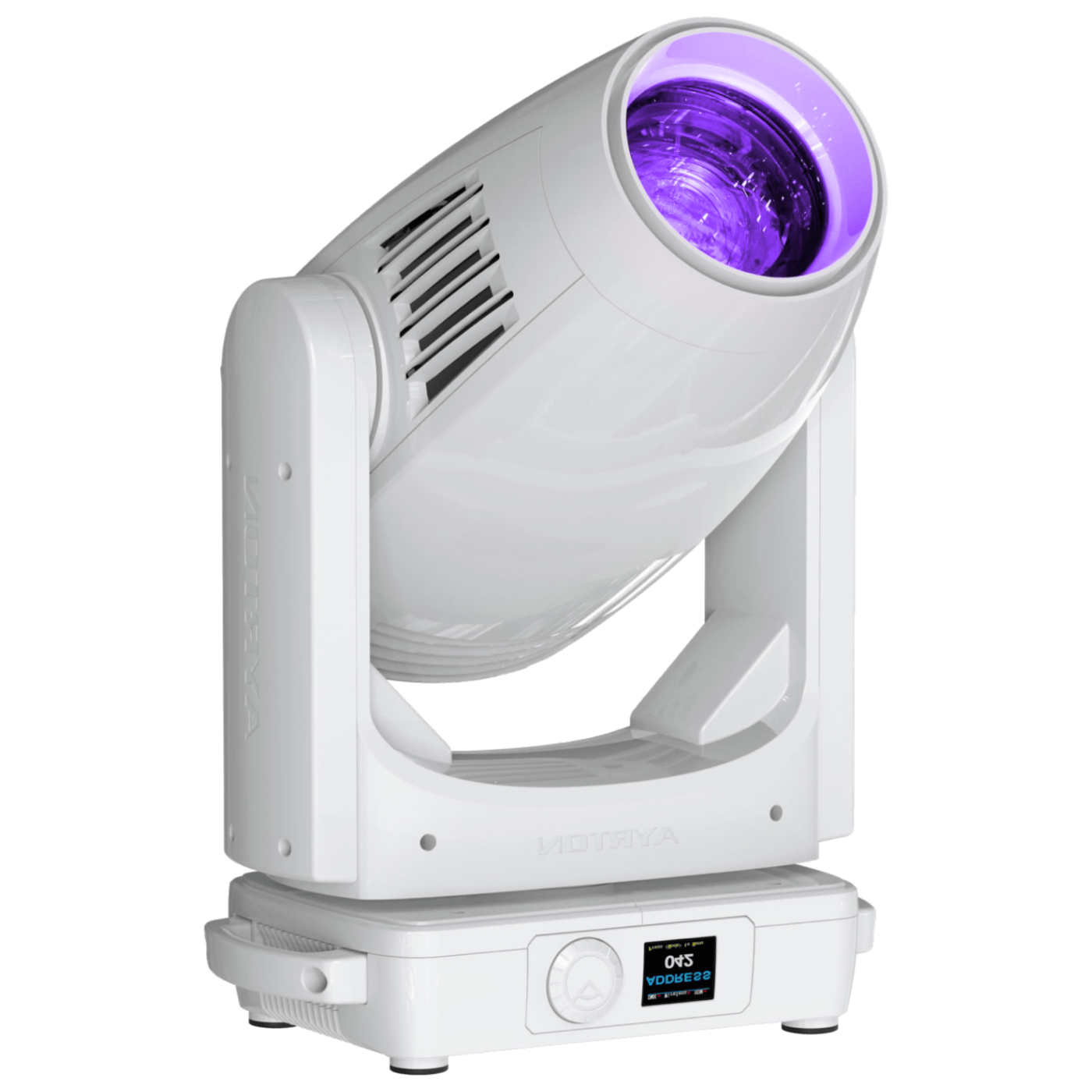

Ayrton has taken on the ambitious challenge of making Diablo the smallest, lightest and most efficient luminaire of its category. With a record output of 19,000 lumens and a total weight of 21.8kg. Diablo is a powerhouse of technology that will tempt the most demanding lighting designers.
To achieve its objective, Ayrton has miniaturised the framing system while maximizing the performance level. As in other profile luminaires of the product line. The framing section allows accurate positioning of its four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position.
A new ultra-compact high-output 550 W power supply feeds eight additional motors in the framing system. The Ayrton Diablo uses a 13-element proprietary optical system delivering an 7.5:1 zoom ratio with a zoom range of 7° to 53°. The 119 mm frontal lens can produce an extremely uniform flat beam that can render images perfectly in all conditions and at any beam angle.
Diablo S, specially designed for stage applications, is equipped with a monochromatic LED light source that can generate extremely high output and metallic white light calibrated at 7000 K.
Ayrton’s Diablo includes a CMY colour mixing system combined with a progressive CTO and a wheel with seven complementary colours. Producing an infinite palette of bright pastels and saturated colours.
The effects section includes a wheel with seven interchangeable HD glass gobos and a continuous dynamic effects wheel. Plus a 15-blade iris diaphragm, a heavy frost filter and a five-facet circular rotating prism. DIABLO has a highly efficient phase-change liquid cooling system using a heat pipe that includes a particularly effective ultra-silent ventilation mode. Perfect for stage and studio applications.
